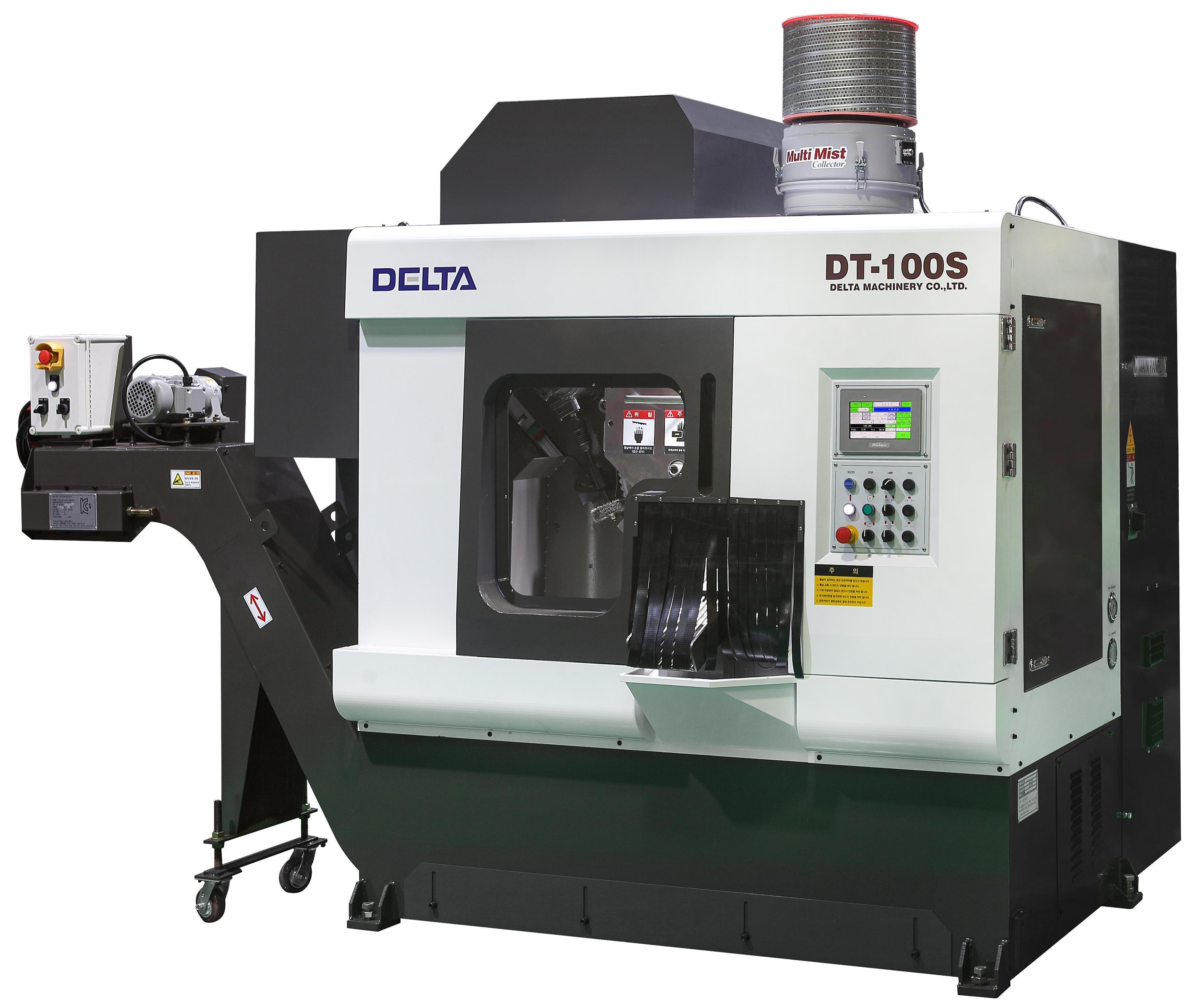

원형톱기계
국내 제작 메이커로서 소비자 맞춤 기계, 공급장치,배출장치 및 공정간 자동화 시스템 주문제작이 가능합니다.
상세사진
제품 정보
By applying a high-precision reducer developed on the principle of zero backlash, high power minimum vibration is pursued to maximize workability, and through the development of our own NC system, it provides easy operation.
특장점

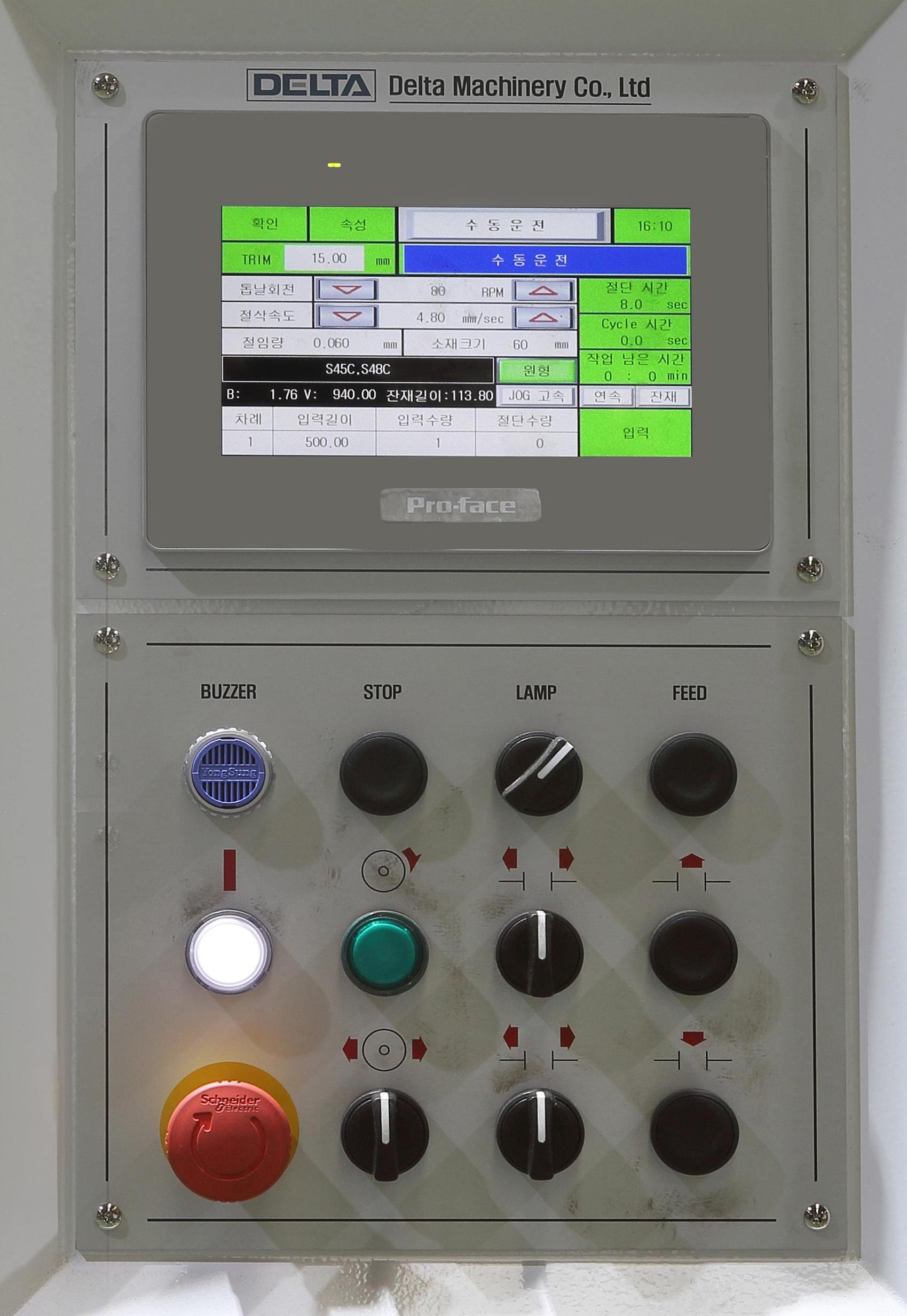

NC control & Touch screen

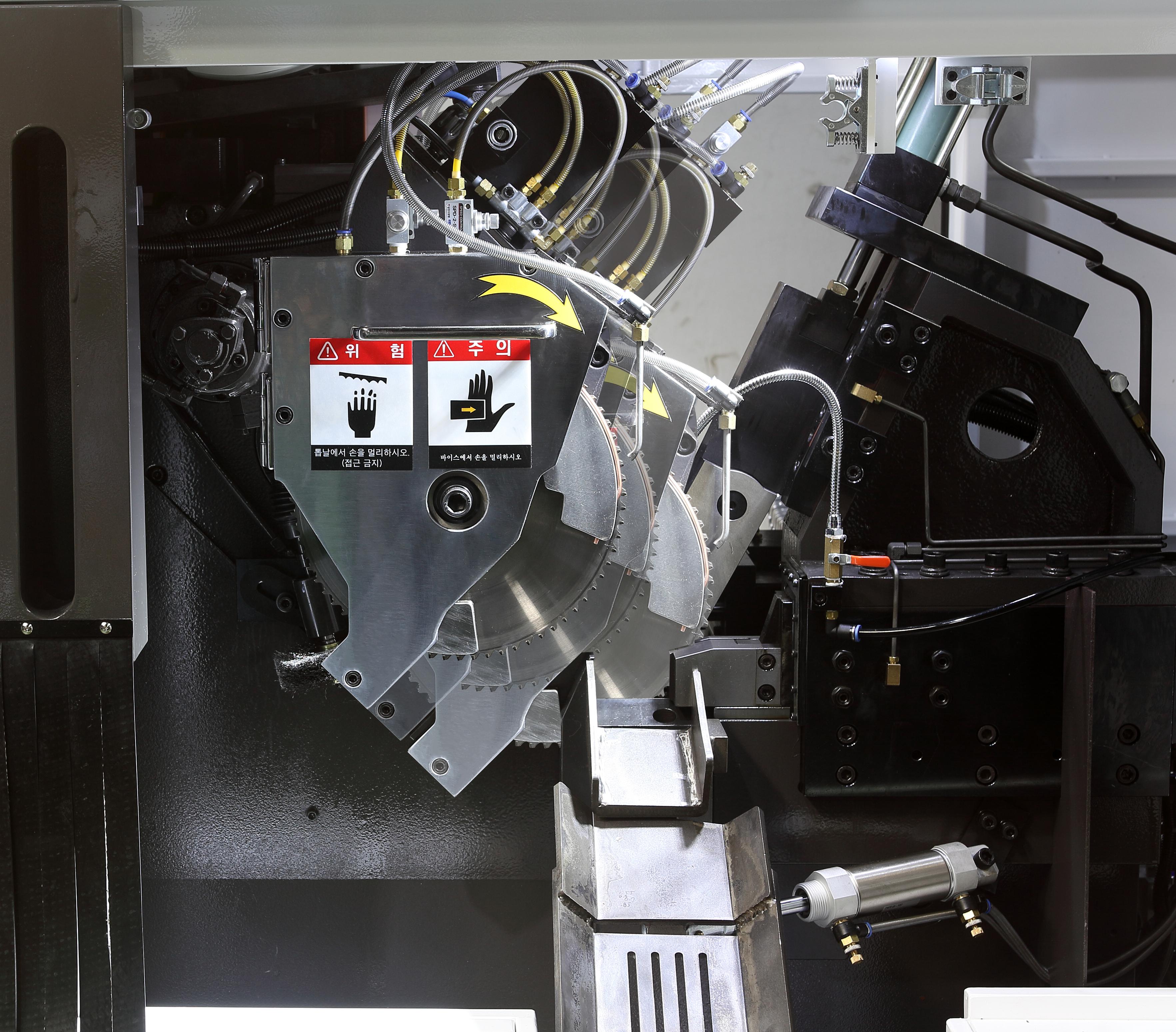

Increase of cutting performance by 45°- slant moving sawhead
Gear box protection by adapting oil circulation unit inside the gear box.
Prolonged chip brush life by rotating at the same rpm as spindle speed
Fully automatic NC control & touch screen
Precise cutting by servo unit for material feeding
Excellent cutting accuracy by vibration-free spindle
Easy operation by touch screen method
Longer blade life by anti backlash powder tension brake
Cutting time and work finishing time display

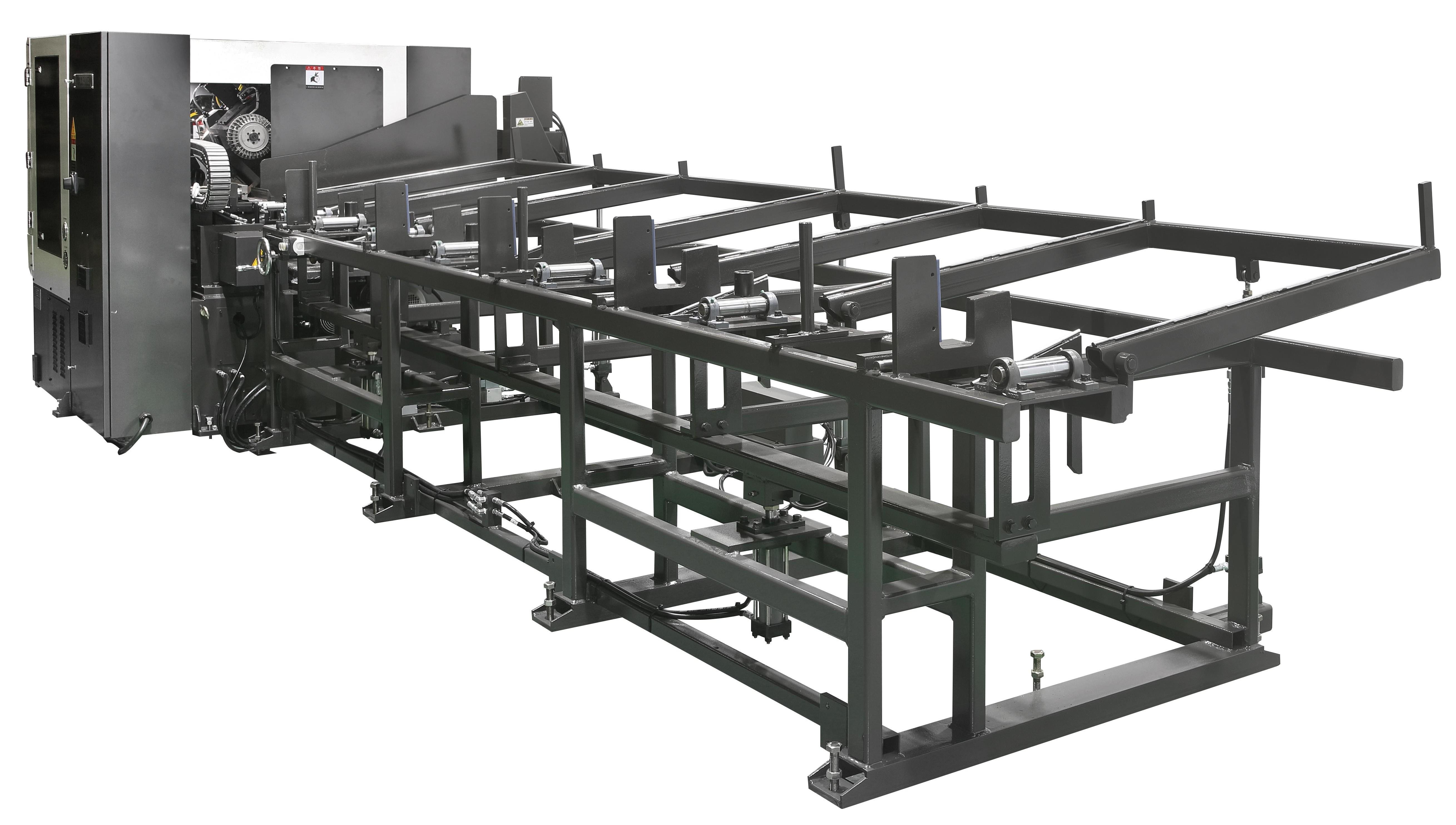

Inclined magazine table for automatic material loading
Error self detecting and their solutions display
Saw head moving by servo motor
Hydraulic motor driven chip brush unit
제품사양
|
MODEL |
DT-100S |
|
| Operating Method | Fully Automatic NC Control & Touch Screen | |
| Cutting Capacity | ○ |
Ø20~105 |
| □ |
75 x 75 mm |
|
| Length |
10~9999 mm |
|
| Minimum Remnant |
45+α mm |
|
| SawHead Feeding |
45° Slant Type |
|
| Workpiece Feeding |
710 mm |
|
| Blade | Size |
Ø360x2.6T |
| Revolution Speed |
70~160 rpm |
|
| Motor | Drive |
11 kw |
| Hydraulic |
2.2 kw |
|
| Cutting Fluid | Compressed Air + Mist Oil | |
| Material Feeding | AC Servo Motor | |
| Weight |
4,200 kg |
|
| Floor Space (WxLxH) |
2740 x 1950 x 2160 mm |
|
| Feeder Size (WxLxH) | 1570 x 5510 x 1410 mm | |
※ The above spec and design are subject to change without prior notice.
기본 장비
Steel belt type auto chip conveyor
Auto feeder (5.5M)
Tools and tool box (1set)
Manual (1copy)
Carbide tipped circular saw blades (2pcs)
선택 장비
Mist cleaner
Blade cooling device
Material unloading unit
Poket added feeder
Motorized rope type auto feeder
Brush deburing unit
