원형톱기계
국내 제작 메이커로서 소비자 맞춤 기계, 공급장치,배출장치 및 공정간 자동화 시스템 주문제작이 가능합니다.

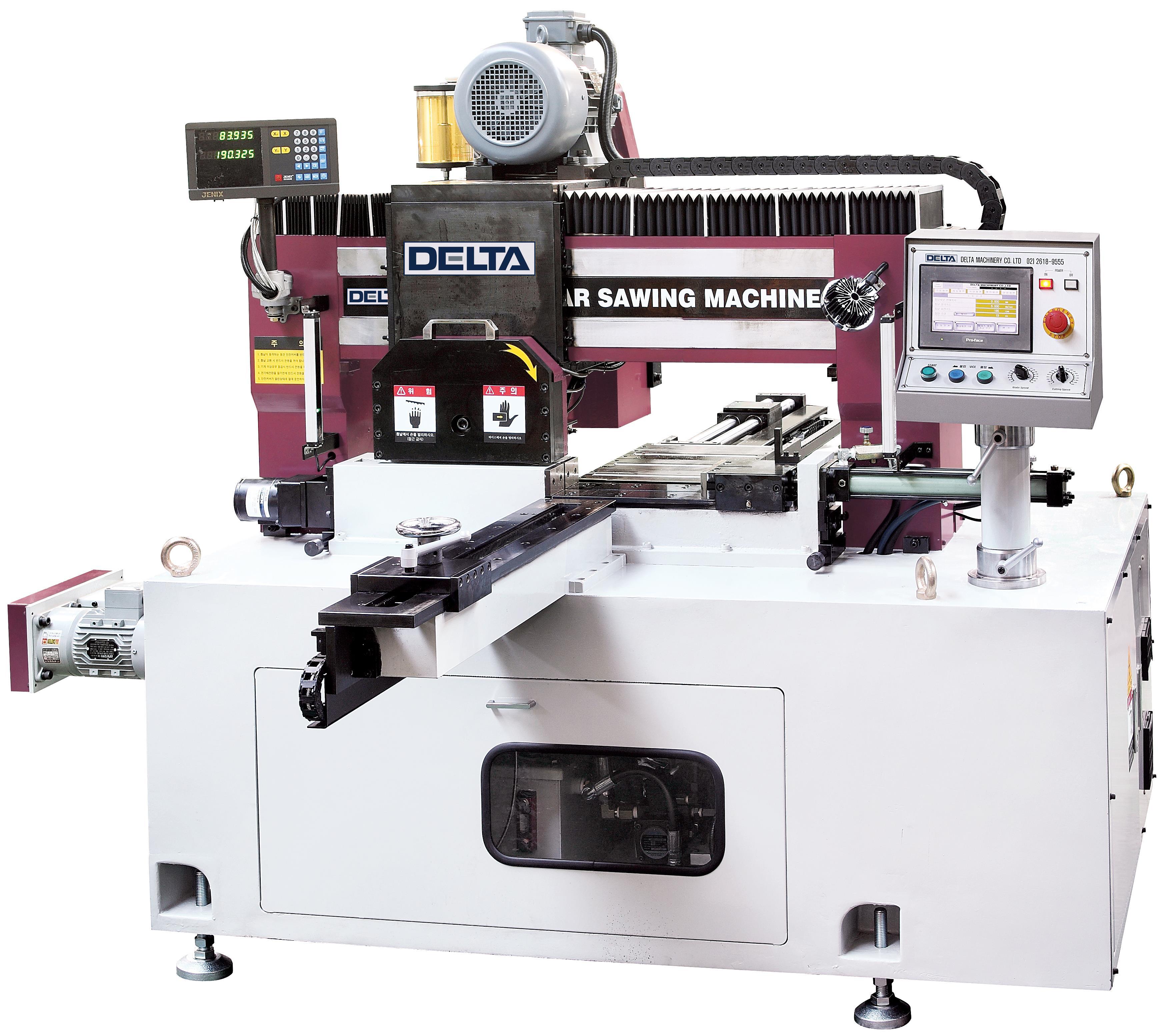

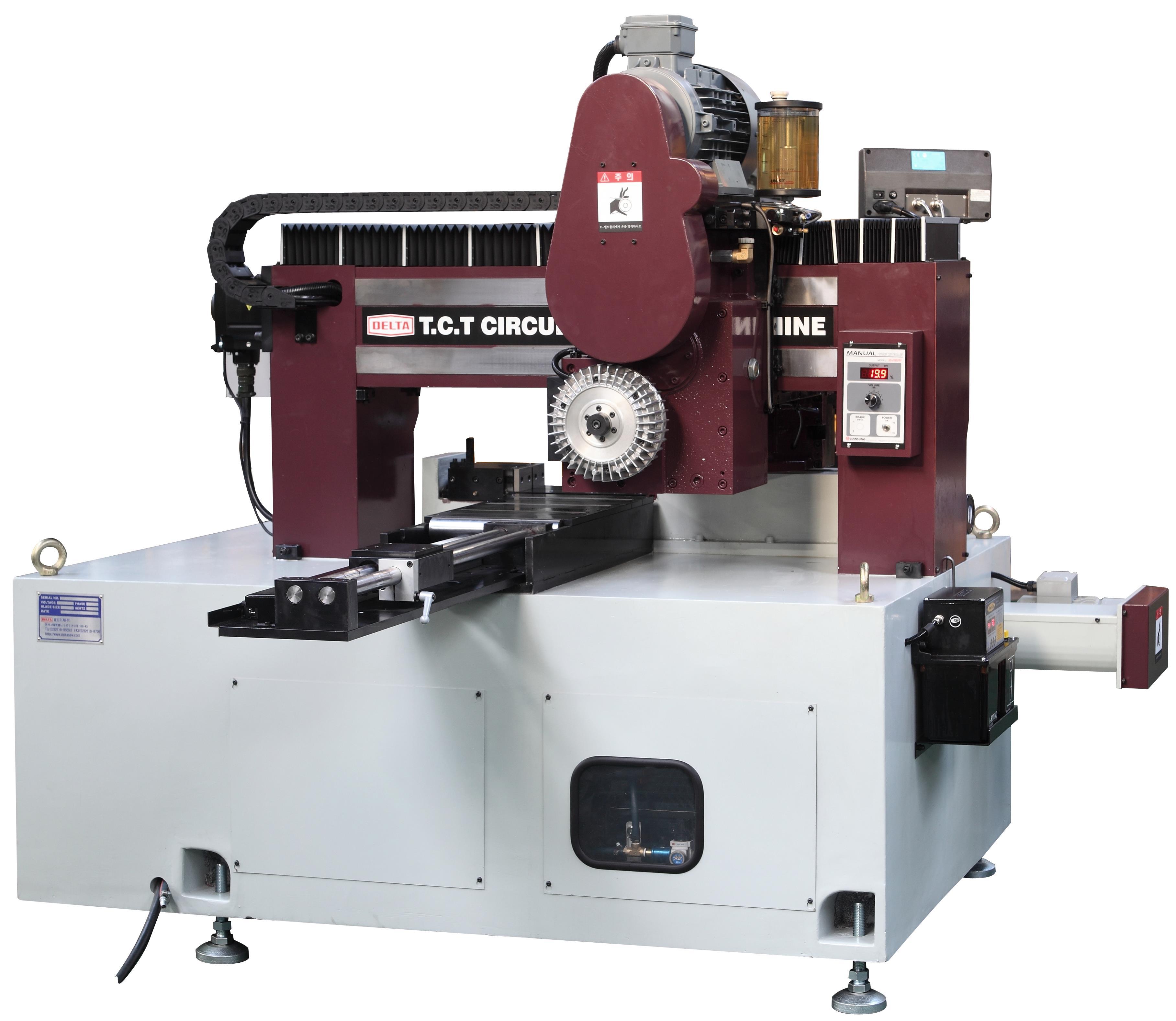

상세사진
특장점
Semi automatic NC control & touch screen
Excellent cutting accuracy by vibration-free spindle
Easy operation by touch screen method
Longer blade life by anti backlash air tension brake and misting oil
Cutting time and work finishing time display
Error self detecting and their solutions display
Saw head parallel slide moving by servo motor
Improved convenience by setting cutting lengths by servo motor
Rigid fixation of workpiece by powerful hydraulic vertical clamp device
Use of rigid castings on the lower frame to maintain vibration-free cutting
Precise workpiece feeding by servo motor(option)
제품사양
| MODEL | DT-300M / 500M | |
| Operating Method |
NC Control & Touch Screen |
|
| Cutting Capacity | Height |
20~50 mm / 20~70 mm |
| Width |
10~300 mm / 10~500 mm |
|
| Length |
1000 mm |
|
| Blade | Size |
Ø315x2.2T / 360x2.6T |
| Revolution Speed |
80~130 rpm |
|
| Motor |
Drive |
7.5 kw / 11kw |
| Hydraulic |
1.5 kw |
|
| SawHead Servo | 2 kw | |
| Workpiece Feed Servo | 1 kw | |
| Cutting Fluid |
Compressed Air + Mist Oil |
|
| Weight |
2,900 kg |
|
| Floor Space (WxLxH) |
2070 x 2980 x 1680 mm |
|
※ The above spec and design are subject to change without prior notice.
기본 장비
Tools and tool box (1set)
Manual (1copy)
Carbide tipped circular saw blades (2pcs)
선택 장비
When automatic operation system is selected, the precise and automatic cutting can be made by the feeding servo motor
Material unloading unit
