밴드톱기계
헬리컬 + 베벨형 감속기 채용으로 고출력 동력전달 및 진동최소화를 통해 절삭력 향상 실현
자체개발 특허출원 유압자동제어 시스템을 적용하여 절삭성 안정화 및 톱날수명 연장을 위한 Feedback 기능을 적용하였습니다.
또한 자체 NC 시스템적용을 통해 더 많은 가치를 제공하는 제품의 결과를 경험 할 수 있습니다.

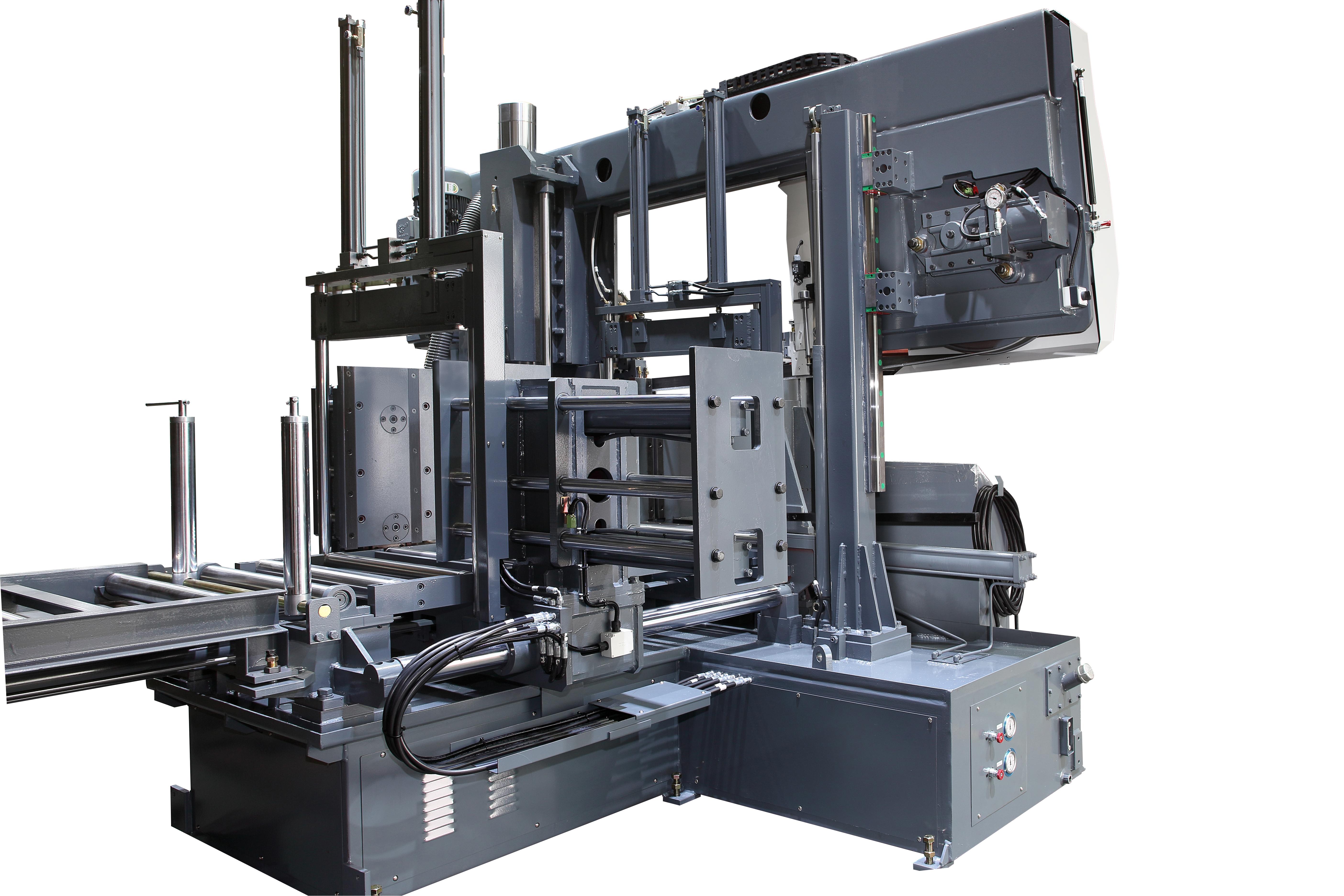

상세사진
특장점
Fully Automatic NC system and touch screen
High efficiency reducer (German helical bevel gear) for maximum cutting power

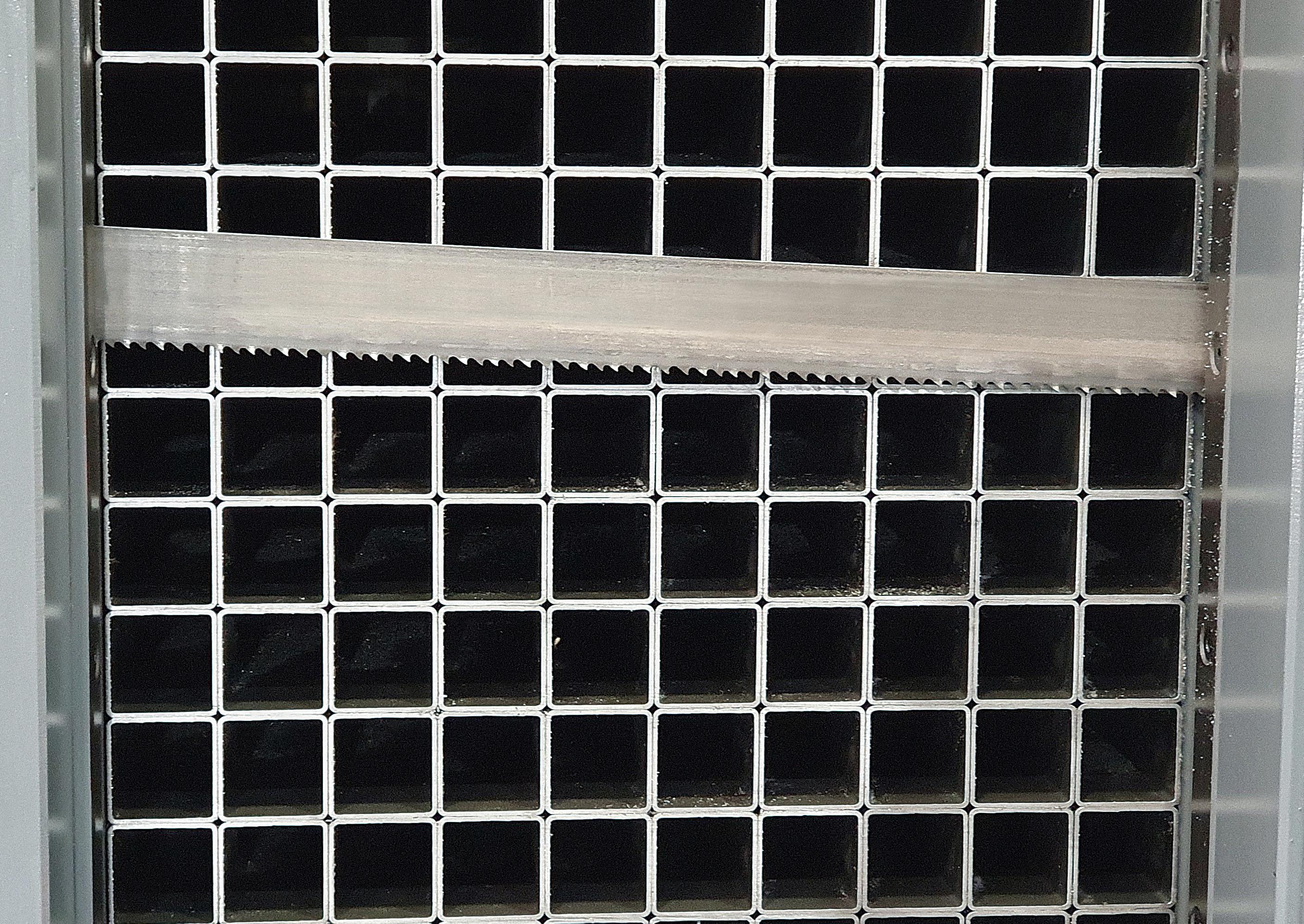

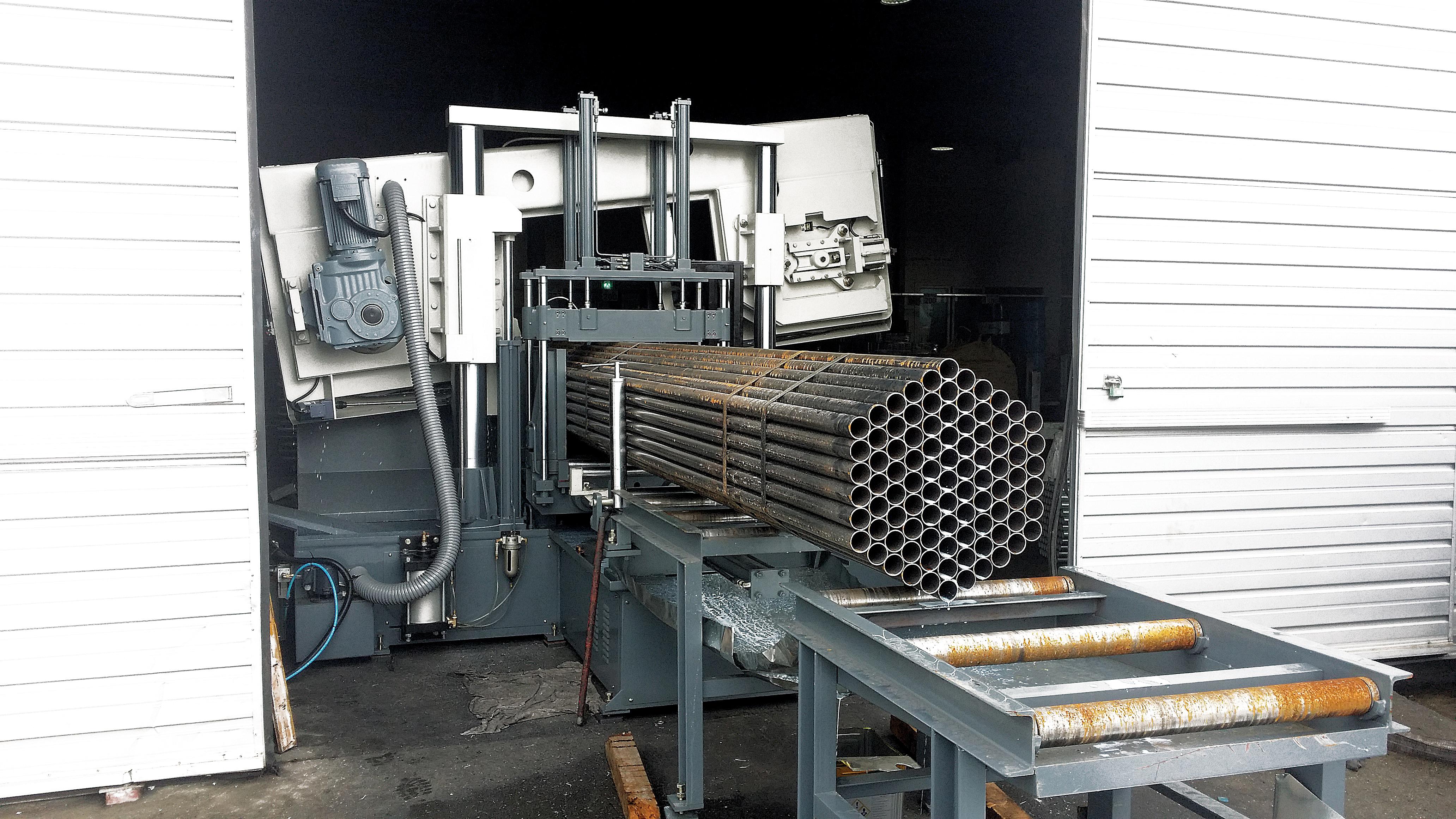

Easier bundle cutting by fixed overhead vices
Shaft eccentricity is prevented by applying the front clamping of the reducer (Practical Model No. 0352628)
Stabilized cutting speed and maximized performance by adopting independently developed hydraulic systems and hydraulic control valves (Patent No. 10-2207202/2213256),
Enables real-time monitoring of cutting speed
Saw blade speed control by inverter
Lower and upper body of rigid structures
Maintaining saw blade tension by hydraulic pressure
Heat-treated feeding bar and cylinder rod to enhance durability

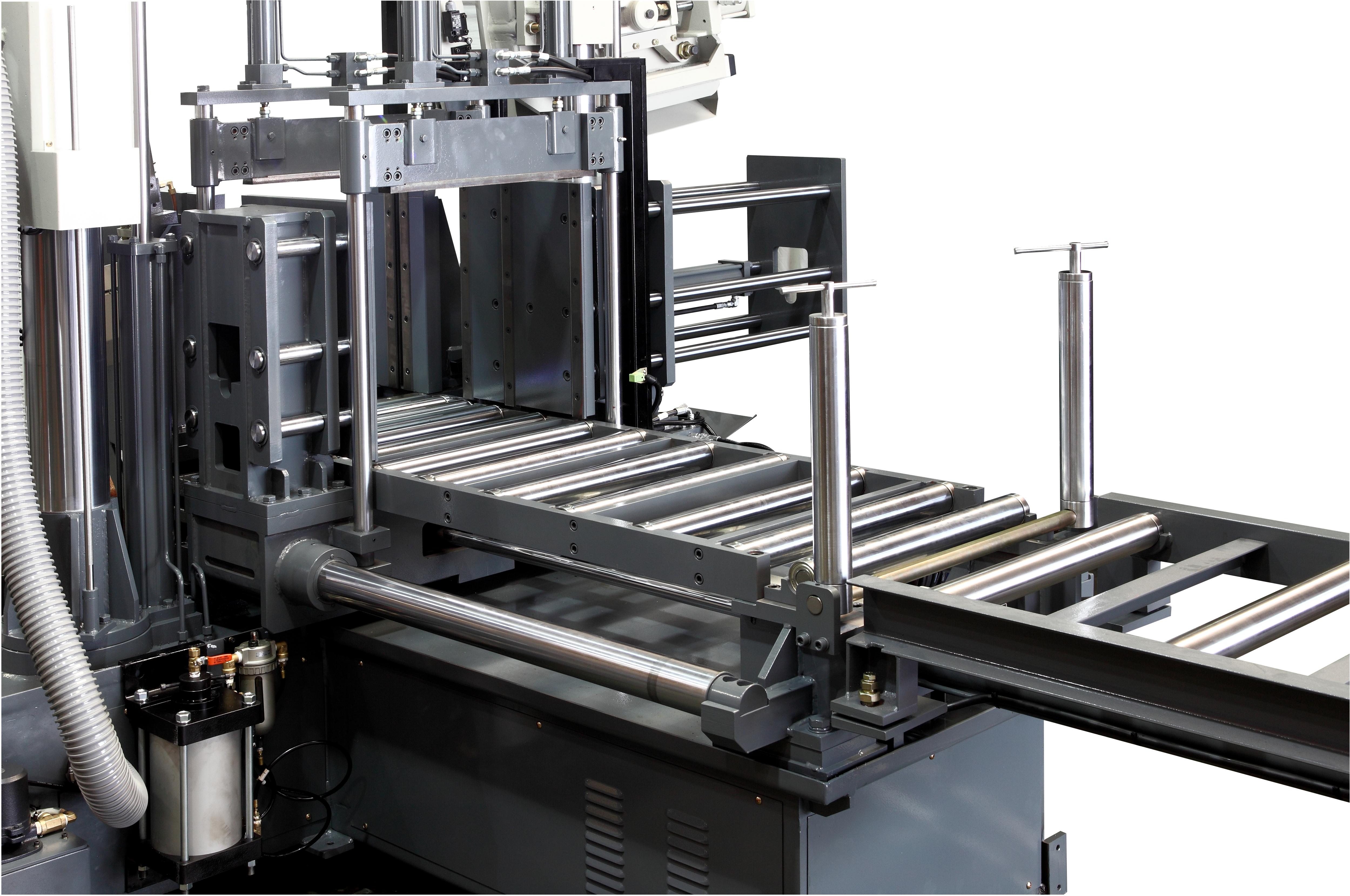

Strengthen material clamping by using split front vise and 3 jaws
LED lamps provide sufficient illumination

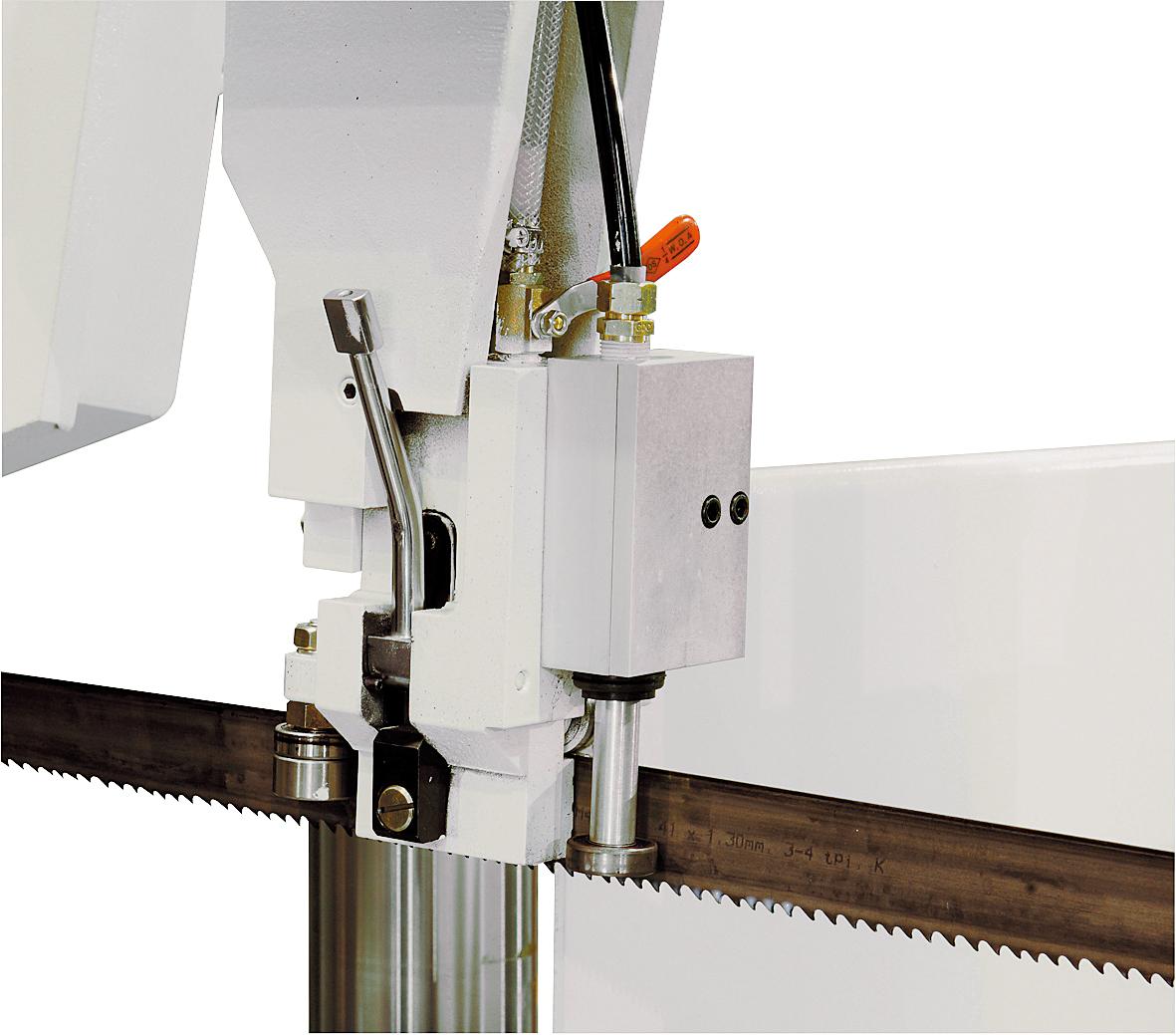

Improving work convenience and cutting performance by automatic transfer of saw blade guide arm
Wired remote controller
Automatic stop function in case of inclined cutting
제품사양

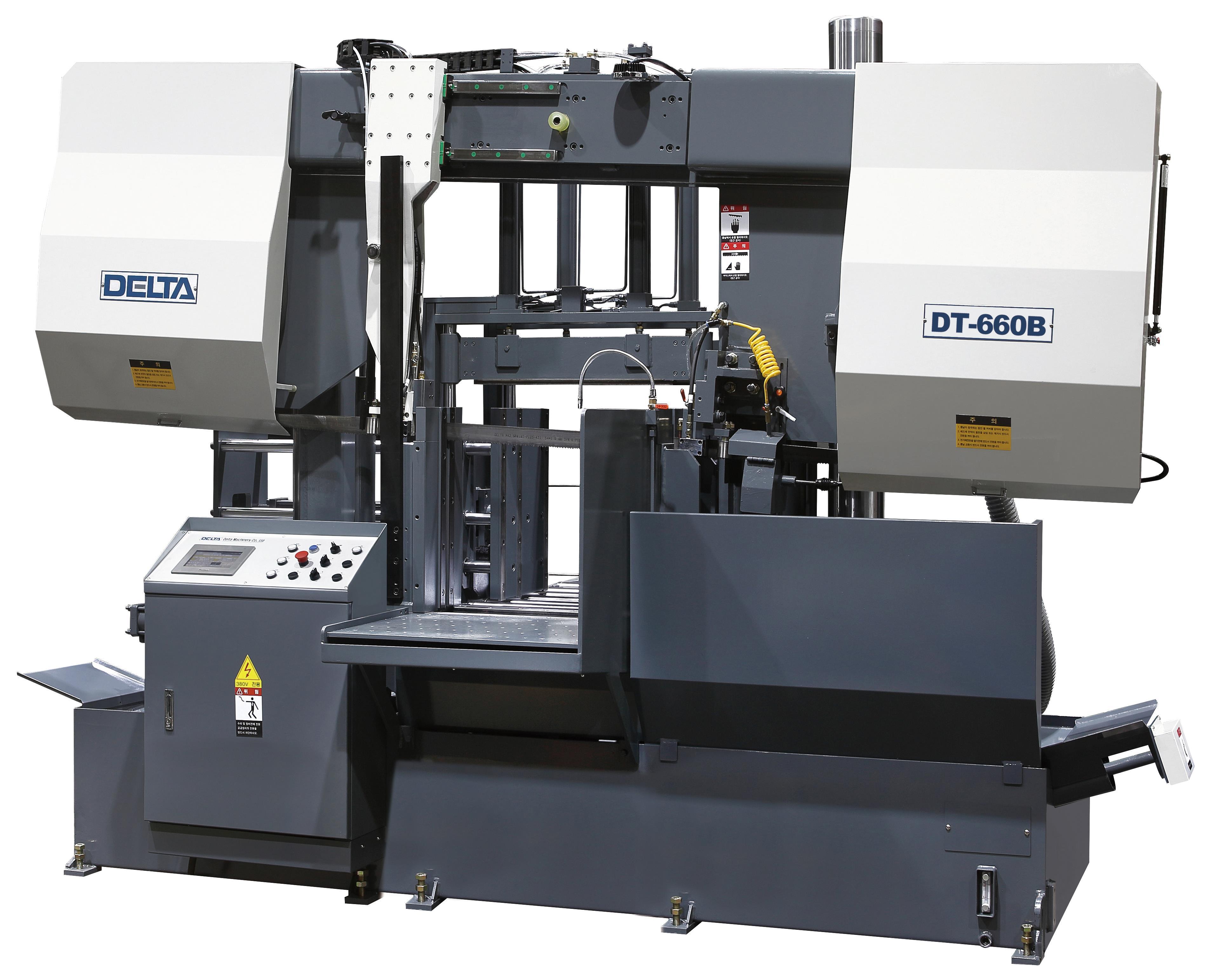

| MODEL | DT-560B | DT-660B | |
| Operating Method | Fully Automatic NC Control & Touch Screen | ||
| Cutting Capacity | ○ | Ø20~560 mm | Ø20~660 mm |
| □ | 560×560 mm | 670×660 mm | |
| ▦ | 560×560 mm | 670×660 mm | |
| Blade | Speed |
15~115 m/min |
15~115 m/min |
|
Size (L×W×T) |
7400x54x1.6 mm |
7530x54x1.6 mm | |
| Tension | Hyraulic | Hyraulic | |
| SawHead inclination Angle | 3° | 3° | |
| Motor | Band Drive | 7.5 kw | 7.5 kw |
| Hydraulic System | 1.5 kw | 1.5 kw | |
| Coolant Pump | 0.2 kw | 0.2 kw | |
| Tank Capacity |
Hydraulic |
70 ℓ | 70 ℓ |
| Cutting Fluid | 120 ℓ | 120 ℓ | |
| Weight | 5,000 kg | 6,500 kg | |
|
Floor Space (W×L×H) |
3450x3430x2310 mm | 3550x3620x2460 mm | |
* The above spec and design are subject to change without prior notice.
기본 장비
Tool and tool box
Saw blade (1pcs)
Instruction manual (1copy)
Roller table 2M (2set)
Fixed overhead vise
Auto moving blade guide arm
Chip conveyor
Vice pressure reducing valve
Wired remote controller(Material feeding forward/backward, clamping/unclamping, sawhead ascending/descending)
Inclined cutting detection device
선택 장비
Misting oil supply unit
Wireless remote control (Material feeding forward/backward, clamping/unclamping, sawhead ascending/descending)
