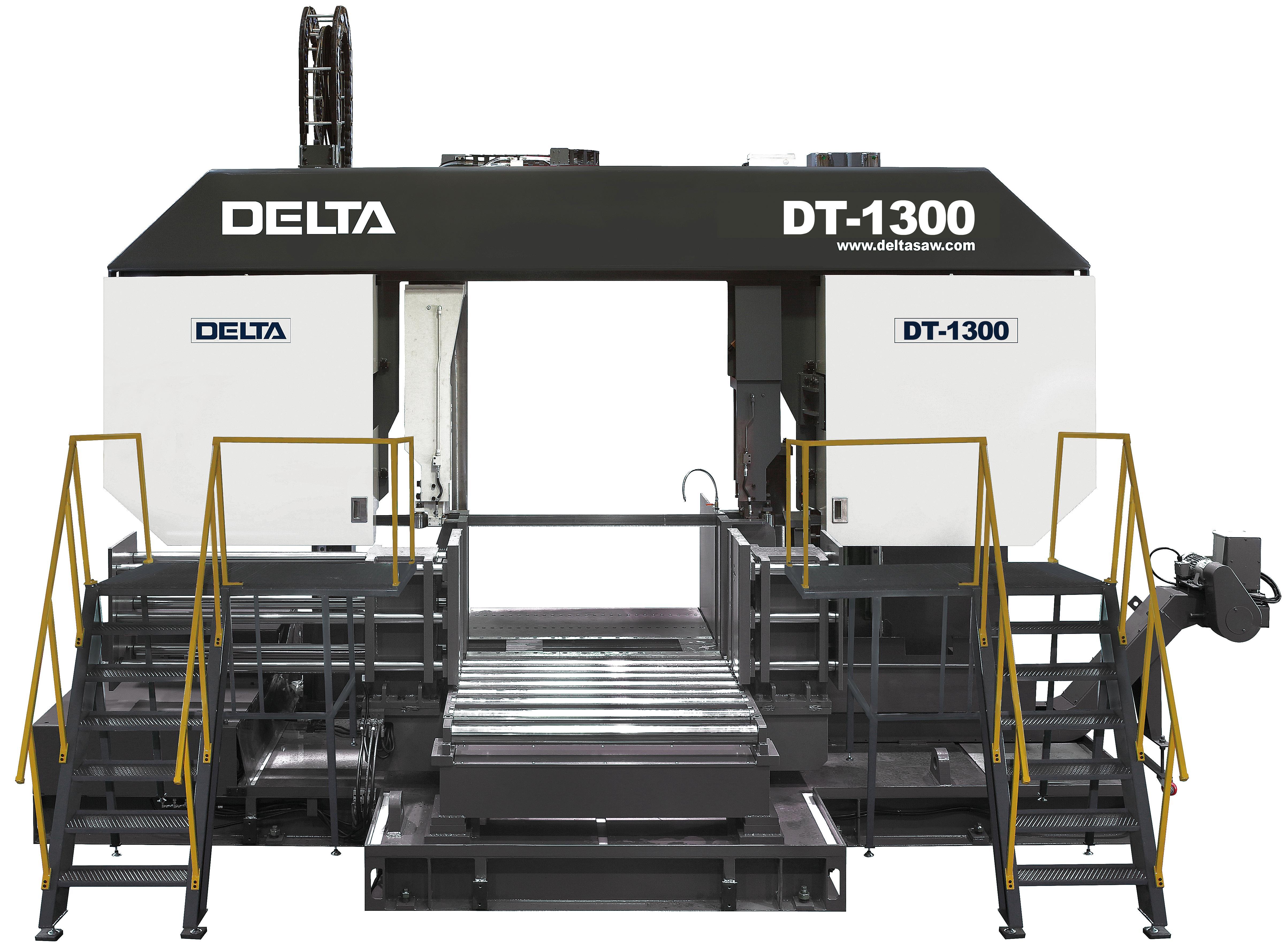

밴드톱기계
헬리컬 + 베벨형 감속기 채용으로 고출력 동력전달 및 진동최소화를 통해 절삭력 향상 실현
자체개발 특허출원 유압자동제어 시스템을 적용하여 절삭성 안정화 및 톱날수명 연장을 위한 Feedback 기능을 적용하였습니다.
또한 자체 NC 시스템적용을 통해 더 많은 가치를 제공하는 제품의 결과를 경험 할 수 있습니다.
상세사진
특장점
Fully automatic or semi-automatic NC system and Touch Screen

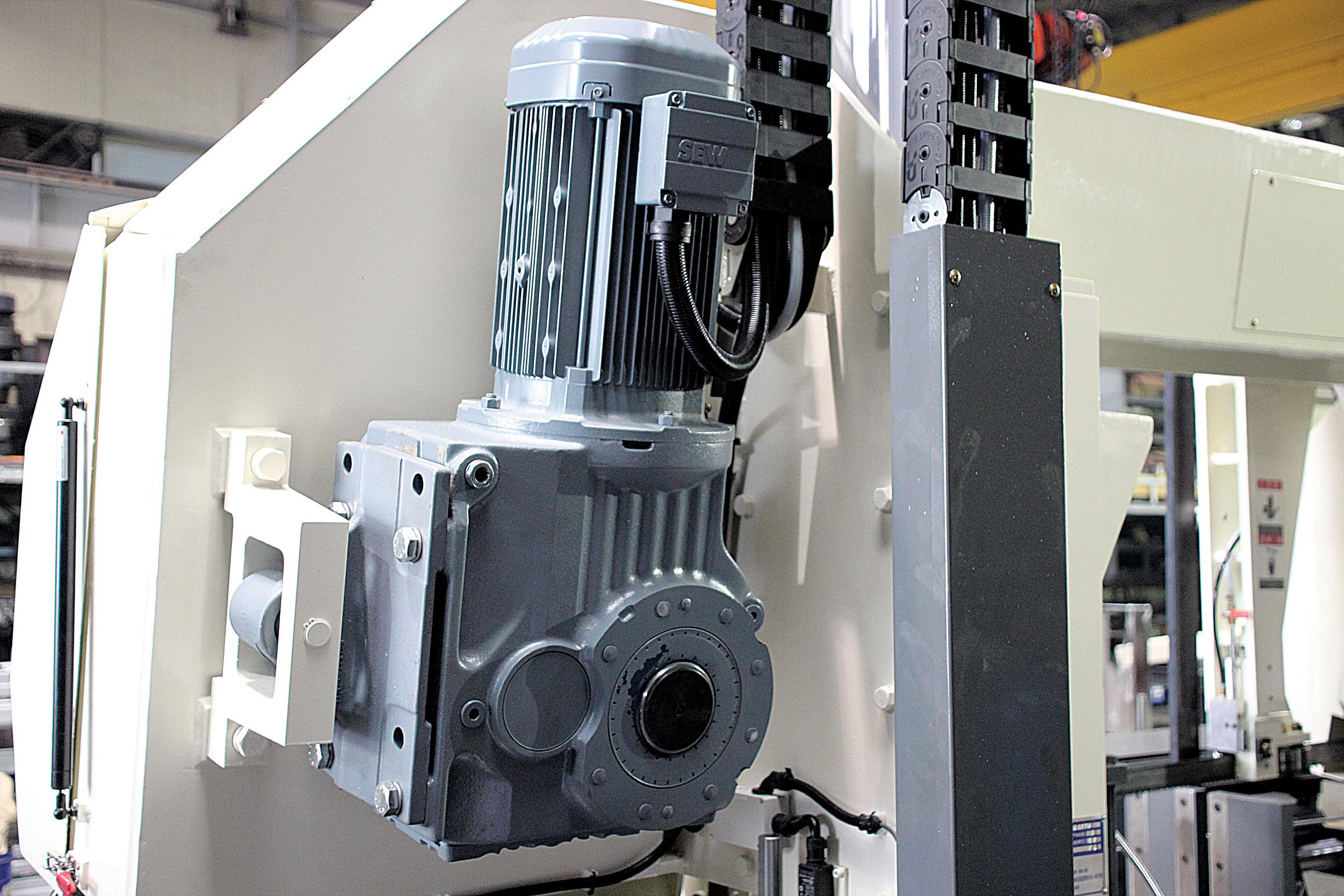

High efficiency reducer (German helical bevel gear) for maximum cutting power
Improvement of straightness and precision by high precision LM GUIDE
Protection of reducer with shaft clamping and load attenuation (Patent no. 0352628)
Stabilizing cutting speed and maximizing cutting performance through self-development of hydraulic system (Patent no. 10-2207202/2213256)
Easy adjustment of saw blade rotation speed by inverter
Core cutting available by cutting depth setting function
Real-time monitoring of cutting speed
Improvement of material clamping by 4-JAW vice unit
Remote control to improve operational convenience (optional)
Automatic stop function in case of inclined cutting( optional)
제품사양
| MODEL | DT-8075 | DT-1075 | DT-1310T | DT-1300T | DT-1600T | DT-18160T | ||
| Operating Method |
Fully Automatic NC Control or Semi NC Control with Touch Screen |
|||||||
| Cutting Capacity | ○ (mm) | Ø50~750 | Ø50~750 | Ø350~1000 | Ø350~1300 | Ø500~1600 | Ø600~1800 | |
| □ (mm) | 800x750 | 1000x750 | 1300x1000 | 1300x1300 | 1600x1600 | 1800x1600 | ||
| Blade |
Speed (m/min) |
15~80 | ||||||
|
Size (L×W×T) (mm) |
7800x54x1.6 | 8200x54x1.6 | 10260x67x1.6 | 11880x80x1.6 | 15500x80x1.6 | 15900x80x1.6 | ||
| Tension | Hydraulic | |||||||
| Motor |
Band Drive (kw) |
9.2 | 9.2 | 11 | 15 | 20 | 20 | |
|
Hydraulic System (kw) |
3.75 | 3.75 | 5.5 | 5.5 | 5.5 | 5.5 | ||
|
Coolant Pump (kw) |
0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | ||
| Tank Capacity |
Hydraulic (ℓ) |
120 | 120 | 150 | 150 | 150 | 150 | |
|
Cutting Fluid (ℓ) |
80 | 80 | 100 | 150 | 150 | 150 | ||
|
Weight (kg) |
9,100 | 10,000 | 14,000 | 19,000 | 31,000 | 34,500 | ||
|
Floor Space (W×L×H) (mm) |
4250x2700x2550 | 4400x2700x2550 | 5150x2380x2900 | 5650x4360x3810 | 8300x4850x4350 | 8400x4850x4350 | ||
* The above spec and design are subject to change without prior notice.
* We can customize it by changing the specifications according to the customer's request.
선택 장비
Wireless remote control (Material feeding forward/backward, clamping/unclamping, sawhead ascending/descending)
Inclined cutting detection device
