밀링가공기계
국내 제작 메이커로서 가공방법에 따른 소비자맞춤 기계주문제작이 가능합니다.

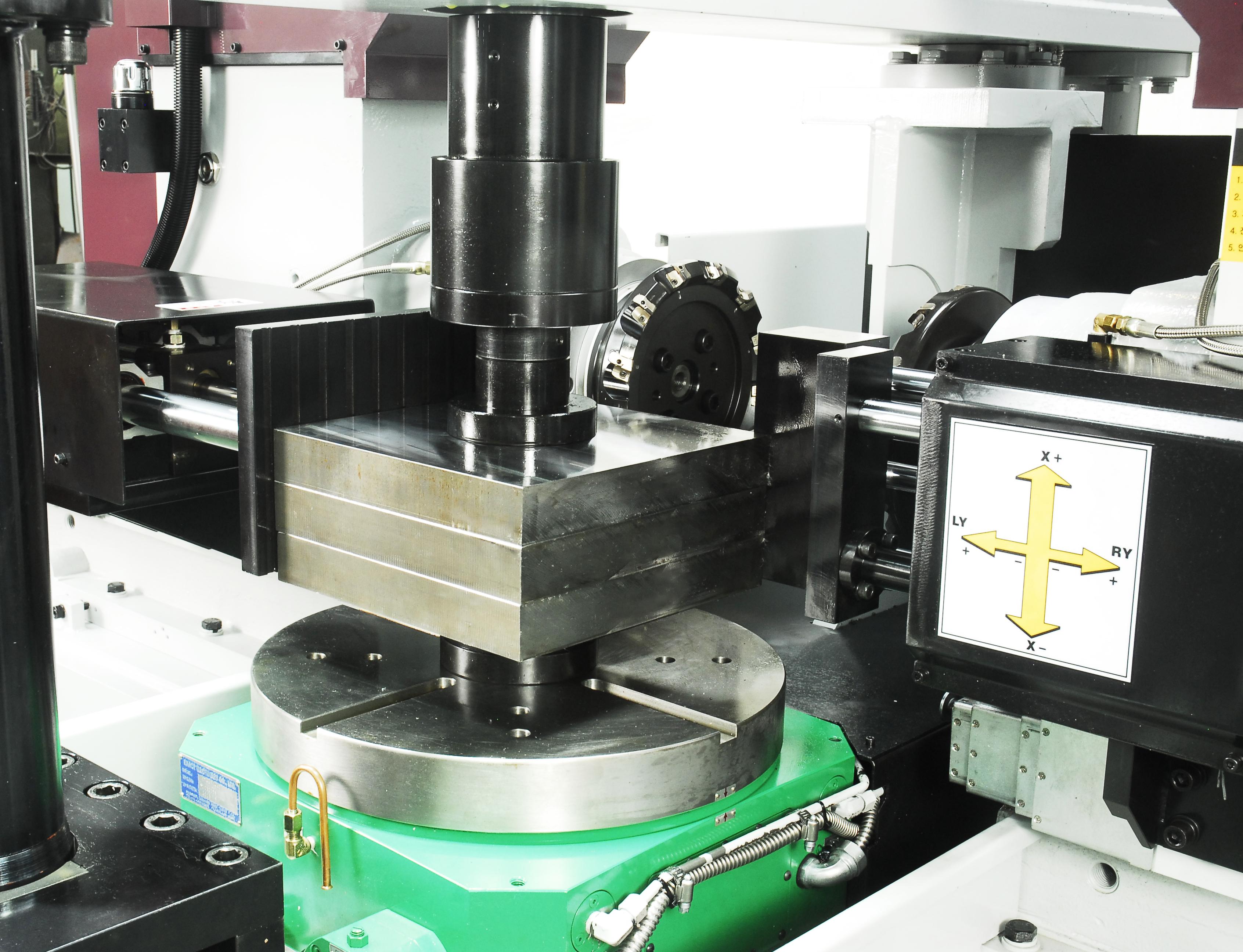

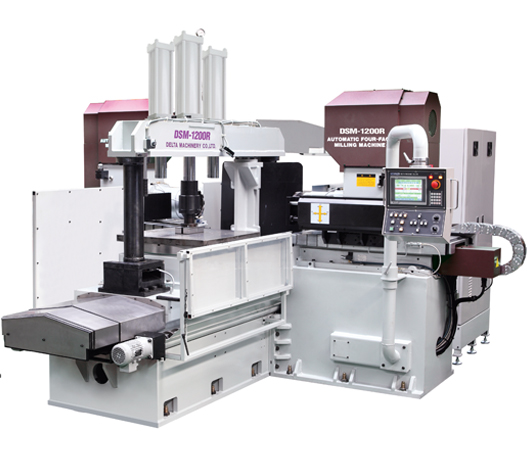

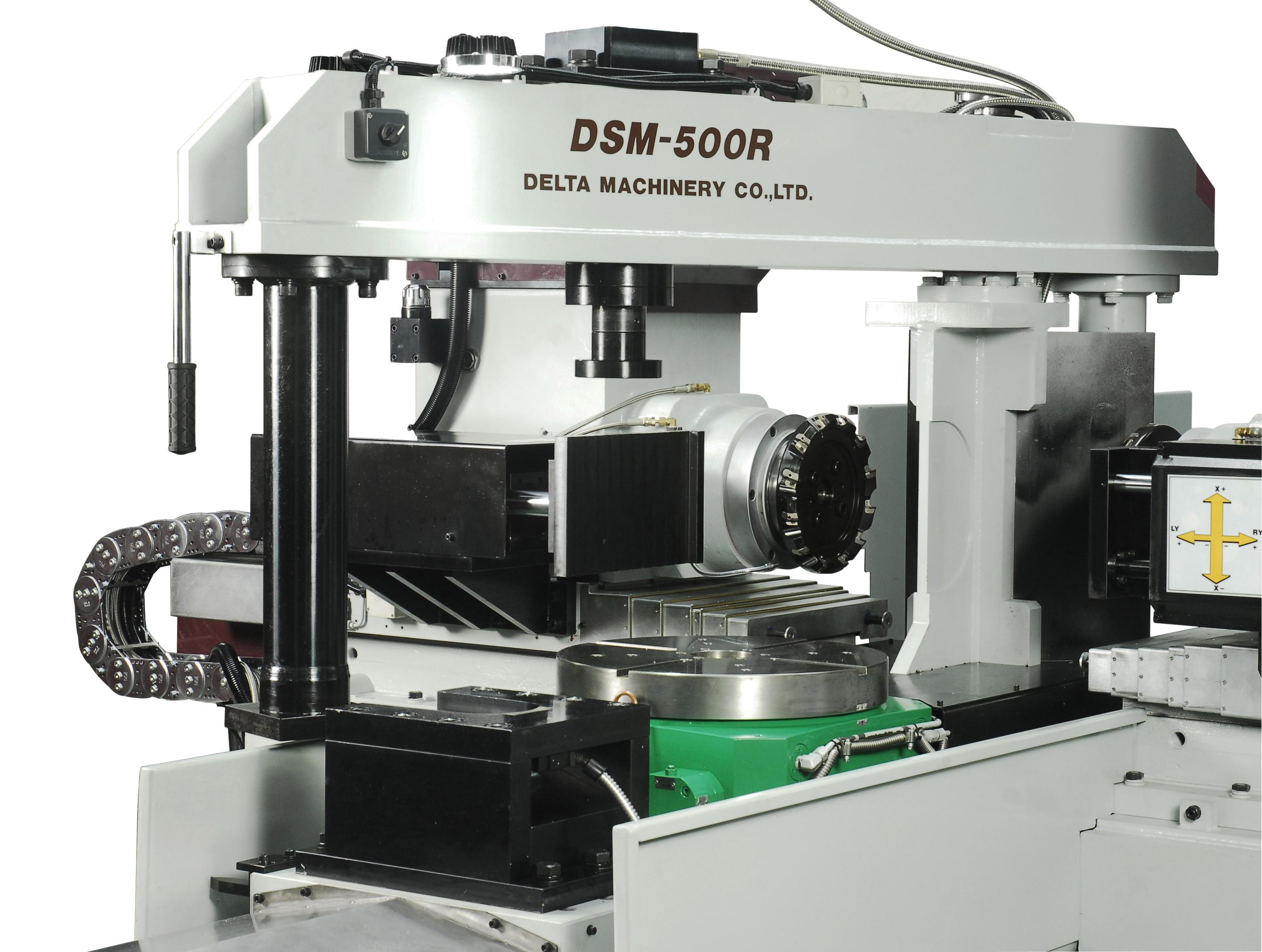

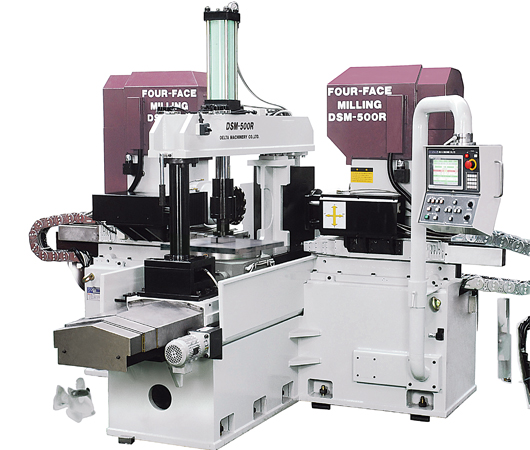

상세사진
특장점

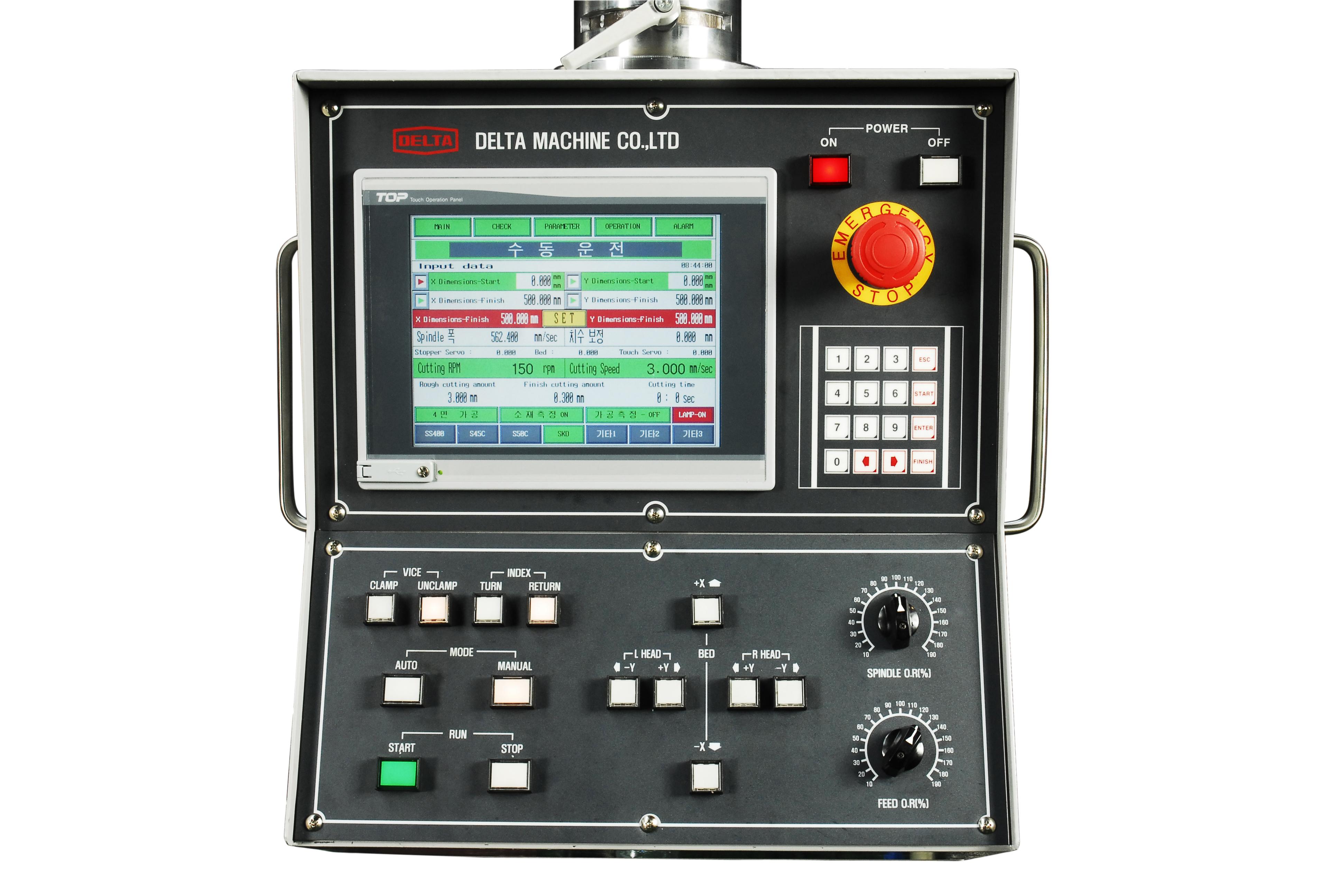

NC system & independent touch screen control panel

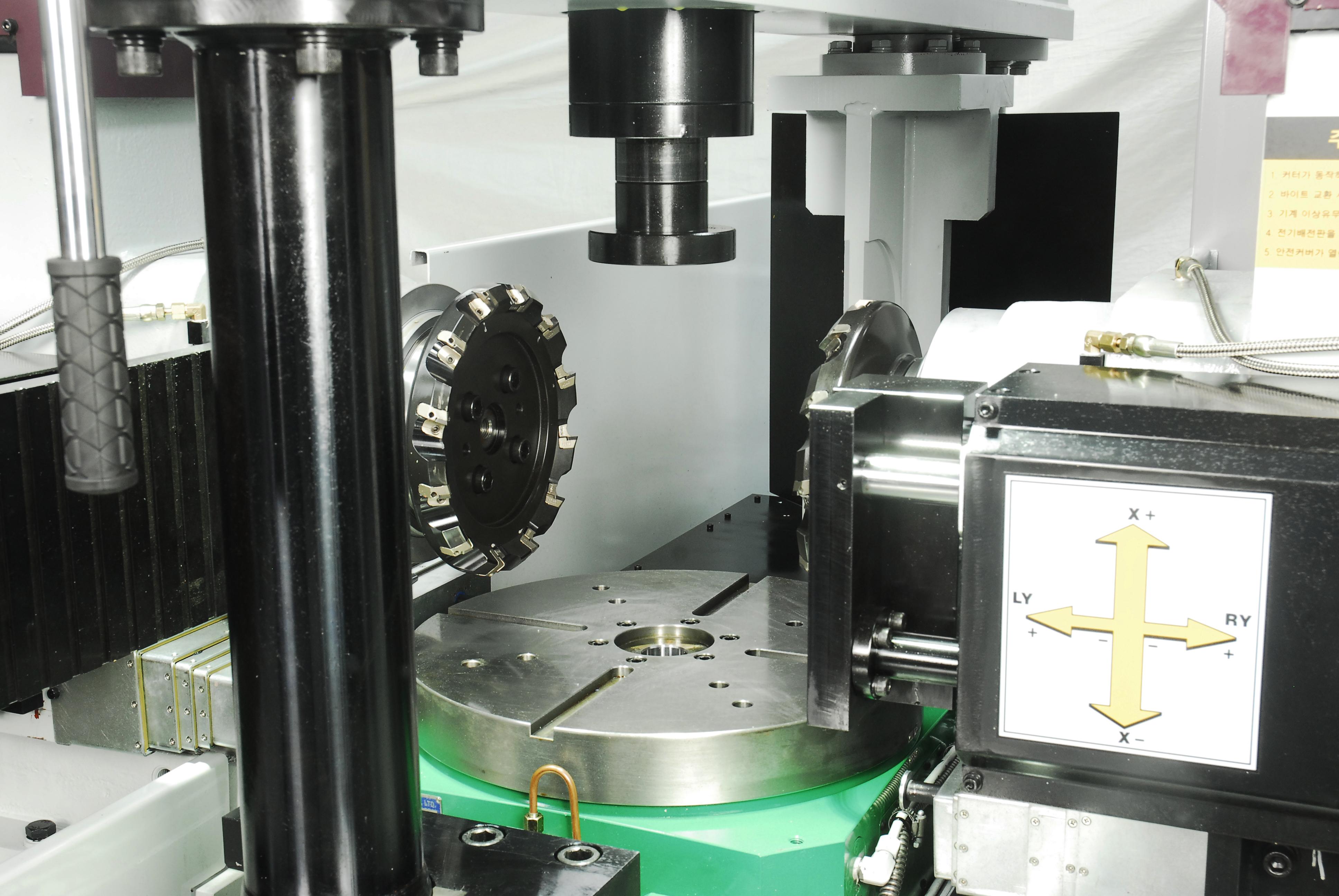

Ensuring accurate parallelism and squareness by double mill cutter and index table
Durable accuracy by servo motor driven spindle and work bed
High durability by robust base and LM guide with auto lubricating oil supply
Heavy machining by powerful spindle driven by gear box
Automatic size measuring of workpiece by measuring unit
Easy setting of workpiece by automatic positioning unit
One side milling available for uneven workpiece before normal machining
Returning of zero position after finishing machining work
제품사양
|
MODEL |
DTM-400R |
DTM-500R |
DTM-800R |
DTM-1200R |
||
|
Control method |
Fully Automatic NC Control & Touch Screen |
|||||
|
Milling capacity |
Width (mm) |
30~400 |
50~500 |
200~800 |
1200~1200 |
|
|
Length (mm) |
30~400 |
50~500 |
200~800 |
1200~1200 |
||
|
Height (mm) |
20~140 |
Max. 230 |
Max.230 |
Max.230 |
||
|
Cutter |
Size |
Ø160/Ø250 |
Ø250/Ø315 |
Ø250/Ø315 |
Ø250/Ø315 |
|
|
Revolution speed (rpm) |
100~400 |
100~350 |
100~350 |
100~350 |
||
|
X – axis |
Stroke (mm) |
700 |
800 |
1200 |
1200 |
|
|
Mill feed speed (mm/min) |
100~1000 |
100~1000 |
100~1000 |
100~1000 |
||
|
Rapid feed speed (mm/min) |
10000 |
10000 |
10000 |
10000 |
||
|
모터 |
Spindle (kw) |
11.0×2 |
15.0×2 |
15.0×2 |
15.0×2 |
|
|
Hydraulic (kw) |
2.2 |
2.2 |
2.2 |
2.2 |
||
|
X-axis feeding (kw) |
Servo 5.0 |
Servo 5.0 |
Servo 5.0 |
Servo 5.0 |
||
|
Y/Z-axis feeding (kw) |
Servo 5.0 x2 |
Servo 5.0 x2 |
Servo 5.0 x2 |
Servo 5.0 x2 |
||
|
Workpiece Input/Output |
Manual |
Manual/Hoist |
Manual/Hoist |
Manual/Hoist |
||
|
Vice Clamping Power (kg) |
5,000 |
5,000 |
5,000 |
5,000 |
||
|
Workpiece Max. Size (mm) & weight (kg) |
400x400x140 |
500x500x230 |
800x800x230 |
1200x1200x230 |
||
|
Machine Weight (kg) |
8,000 |
10,000 |
12,000 |
16,000 |
||
|
Floor space (W×L×H) (mm) |
3400×3750 |
3400×3800 |
4600×5200 |
5000×6000 |
||
* All designs and specification are subject to change without prior notice.
* We can customize it by changing the specifications and design according to the customer's request.
기본 장비
Tools and tool box (1set)
Instruction manual (1copy)
선택 장비
Mist oil spray unit
가공공차
|
구 분 |
가공공차 |
비 고 |
|
직각도 |
Max. 0.02mm/300mm |
A/B, B/C, C/D, D/A |
|
평행도 |
Max. 0.02mm/300mm |
A/C, B/D |
|
배면각도 |
Max. 0.03mm/100mm |
E/A, E/B, E/C, E/D |
※ 소재기준면 평탄도에 따라 상기 오차범위 달라질 수 있음
가공성능
|
사이즈 |
재 질 |
주축회전수 |
황 삭 |
정 삭 |
복 귀 |
소재셋팅 |
총가공시간 |
|
100Wx100Lx100T |
SS400 |
300rpm |
40~55sec |
55~60sec |
10sec |
15sec |
4min 5sec |
|
100Wx100Lx100T |
S45C |
250rpm |
50~60sec |
60~70sec |
10sec |
15sec |
4min 25sec |
※ 소재 자동측정기능 사용시간 포함 Including workpiece measuring time
※ 축당 절삭능력 : 5mm Milling per cutter:5mm
※ 측정모델 : DSM-400R Test model: DSM-400R
