DELTA

Product
제품
견적문의

DT

톱날

글로벌 원형톱날 메이커 TENRYU 톱날을 총판대리점으로서 국내 유통판매 하고있습니다.

문의시 재질에 따른 적합한 톱날 선정공급 해드리오니 많은 관심 부탁드립니다.

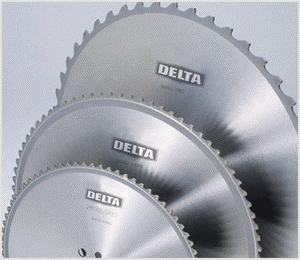

Carbide Tipped Circular Saw Blades

Circular saw blades
문의하기 목록가기

상세사진

제품 정보

The DELTA circular saw blades are the best saw blades for the high-speed circular machines, DT-70S, DT-100S, DT-130S, DT-160S, DT-300, DT-500 and DT-1300A etc developed by our company.

Manufactured by welding tungsten carbide tips to high-strength circular plates with a state-of-the-art electron beam and then griding

each tip with the wolrd best griding machines.

The circular saw blades cut a wide veriaty of round and square bars and pipes with high perfomance, longer life and clean cutting surface.

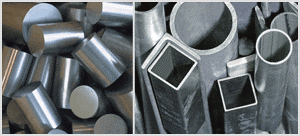

*Applicable materials

Carbon steels, alloy steels, mold steels and stainless steel, etc

특장점

High Performance

Long Life

Best Productivity

Good Price

제품사양

Outer diameter (mm)

Number of teeth (z)

Tip Thickness (mm)

Disk thickness (mm)

Inner hole (mm)

Pinhole

PCD (mm)

Type

Remarks

250

72

2.0

1.7

32

4-Φ11

63

General

For general steels

72

2.0

1.7

32

4-Φ11

63

Coating

For special steels

280

72

2.0

1.7

32

4-Φ11

63

General

For general steels
285

60

2.0

1.7

32(40)

4-Φ11

63

General

For general steels

60

2.0

1.7

32(40)

4-Φ11

63

Coating

For special steels

72

2.0

1.7

32(40)

4-Φ11

63

General

For general steels

72

2.0

1.7

32(40)

4-Φ11

63

Coating

For special steels

80

2.0

1.7

32(40)

4-Φ11

63

General

For general steels

80

2.0

1.7

32(40)

4-Φ11

63

Coating

For special steels

120

2.0

1.7

32(40)

4-Φ11

63

General

For pipes

315

60

2.2

1.9

32

4-Φ11

63

General

For general steels

72

2.2

1.9

32

4-Φ11

63

General

For general steels

120

2.2

1.9

32

4-Φ11

63

General

For pipes

360

60

2.6

2.26

40(50)

4-Φ12(Φ16)

90(80)

General

 For general steels

60

2.6

2.26

40(50)

4-Φ12(Φ16)

90(80)

Coating

For special steels

72

2.6

2.26

40(50)

4-Φ12(Φ16)

90(80)

General

For general steels

80

2.6

2.26

40(50)

4-Φ12(Φ16)

90(80)

General

For general steels

80

2.6

2.26

40(50)

4-Φ12(Φ16)

90(80)

Coating

For special steels

120

2.6

2.26

40(50)

4-Φ12(Φ16)

90(80)

General

For pipes

380

60

2.7

2.26

50

4-Φ16

80

General

 For general steels

60

2.7

2.26

50

4-Φ16

80

Coating

For special steels

80

2.7

2.26

50

4-Φ16

80

General

For general steels

80

2.7

2.26

50

4-Φ16

80

Coating

For special steels

420

48

2.7

2.30

50

4-Φ15

80

General

For general steels

48

2.7

2.30

50

4-Φ15

80

Coating

For special steels

60

2.7

2.30

50

4-Φ15

80

General

For general steels

60

2.7

2.30

50

4-Φ15

80

Coating

For special steels

144

2.7

2.30

50

4-Φ15

80

General

For pipes

480

48

2.7(3.0)

2.30

50

4-Φ21

90

General

For general steels

48

2.7(3.0)

2.30

50

4-Φ21

90

Coating

For special steels

60

2.7(3.0)

2.30

50

4-Φ21

90

General

For general steels

60

2.7(3.0)

2.30

50

4-Φ21

90

Coating

For special steels

72

2.7

2.30

50

4-Φ21

90

General

For general steels

72

2.7

2.30

50

4-Φ21

90

Coating

For special steels

500

60

2.8

2.30

50

4-Φ21

90

General

For general steels

60

2.8

2.30

50

4-Φ21

90

Coating

For special steels

160

2.8

2.30

50

4-Φ21

90

General

For pipes

재질

Carbon Steel (SS400 / S15C / S25C / S45C / S55C)

Stainless Steel (SUS304 / SUS410)

Tool Steel (SKD11 / SKD61)

Chromium Molybdenum Steel (SCM415 / SCM420 / SCM440)

Ball Bearing Steel (SUJ2)

Others : Aluminum, Brass, Cast Iron, etc

톱날 및 소모품

* For circular machines of cutting steel plates

Circular saw

Part code

Blade spec

Remarks
DT-300(M)

DT3031560S

Φ315x2.2Tx60Z S

For Carbon Steel
DT-3010(A)

DT3042048S

Φ420x2.7Tx48Z S

For Carbon Steel

DT3042048C

Φ420x2.7Tx48Z COAT

For Special Steel

DT3042060S

Φ420x2.7Tx60Z S

For Carbon Steel

DT3042060C

Φ420x2.7Tx60Z COAT

For Special Steel
Misting oil

DTMIST200G

MQL2/20L

For Carbon Steel

DTMIST995S

MQL995/20L

For Special Steel

Chip brush

DTBRUSH76S

SUS Φ76

General Purpose
